Genie Tech Inc

Smart G-Scope Capillaroscope - Nailfold Capillaroscopy Package

Smart G-Scope Capillaroscope - Nailfold Capillaroscopy Package

Regular price €699,00 EUR
Regular price Sale price €699,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
Smart G-Scope is one of the best affordable USB capillaroscopes on the market.

Nailfold capillaroscopy is one of the main uses it is built for, and we provide a specially designed capillaroscopy end-cap with built-in light.

With its portable pen-shaped design you will be able to take pictures of your patients' nail bed capillaries anywhere.

You will be able to obtain automatically focused, high quality Full HD photos very easily, and measure capillaries with great precision.

Take advantage of the wide image and 250x magnification level to see more capillaries in a single capture.

Features:
  • Auto focus
  • Fast focusing liquid lens
  • Full HD (1920x1080)
  • Integrated capillaroscopy light
  • Includes remote control
  • Includes software
  • 100% compatible with Capillary.io

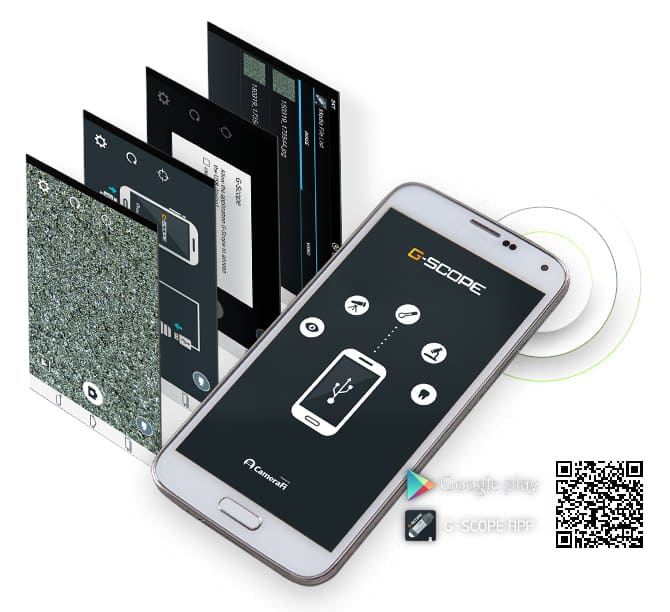

The device includes free generic microscope software, and additionally you have the possibility to use the microscope with our special capillaroscopy application Capillary.io.

Specifications

Lighting
Illumination White LED with on/off control
Optics
Magnification 250x for nailfold capillaroscopy
Field of View at 250x ~ 2.35 x 1.32 mm
Lens Corning® Varioptic® Liquid lens. Advantages: fast, no wear, robust and accurate.
Auto focus Fast auto focus (trigger with device button or remote controller)
Sensor
Sensor type 3.5 Megapixel CMOS
Resolution 2.1 Megapixel (1920x1080)
Frame rate 30 fps @ 1920x1080 (2.1 MP). 60 fps @ 1280x720 (0.9 MP) resolution
Compatibility
Interface USB 2.0 High speed
Operating system Windows XP, Windows 7, Windows 8, Windows 10, Mac OS, Linux, Android
Software Free software for Windows and Android. Also compatible with Capillary.io
Imaging standards DirectShow, UVC
Housing
Housing material Metal
Dimensions 175mm x 25mm
Features
Calibration Yes
Measurement Yes
Capture button In device and remote controller
Movie recording 30fps, AVI (1920x1080, 1280x720, 720x480, 640x480)
Image capture JPG (1920x1080, 1280x720, 720x480, 640x480)
Remote control Infrared remote controller
Exposure Auto exposure
Color control Auto white balance
Image processing Emboss, sketch, grayscale, opposite negative, etc
Stand Optional
End caps Basic end caps included + special end cap for capillaroscopy
Information

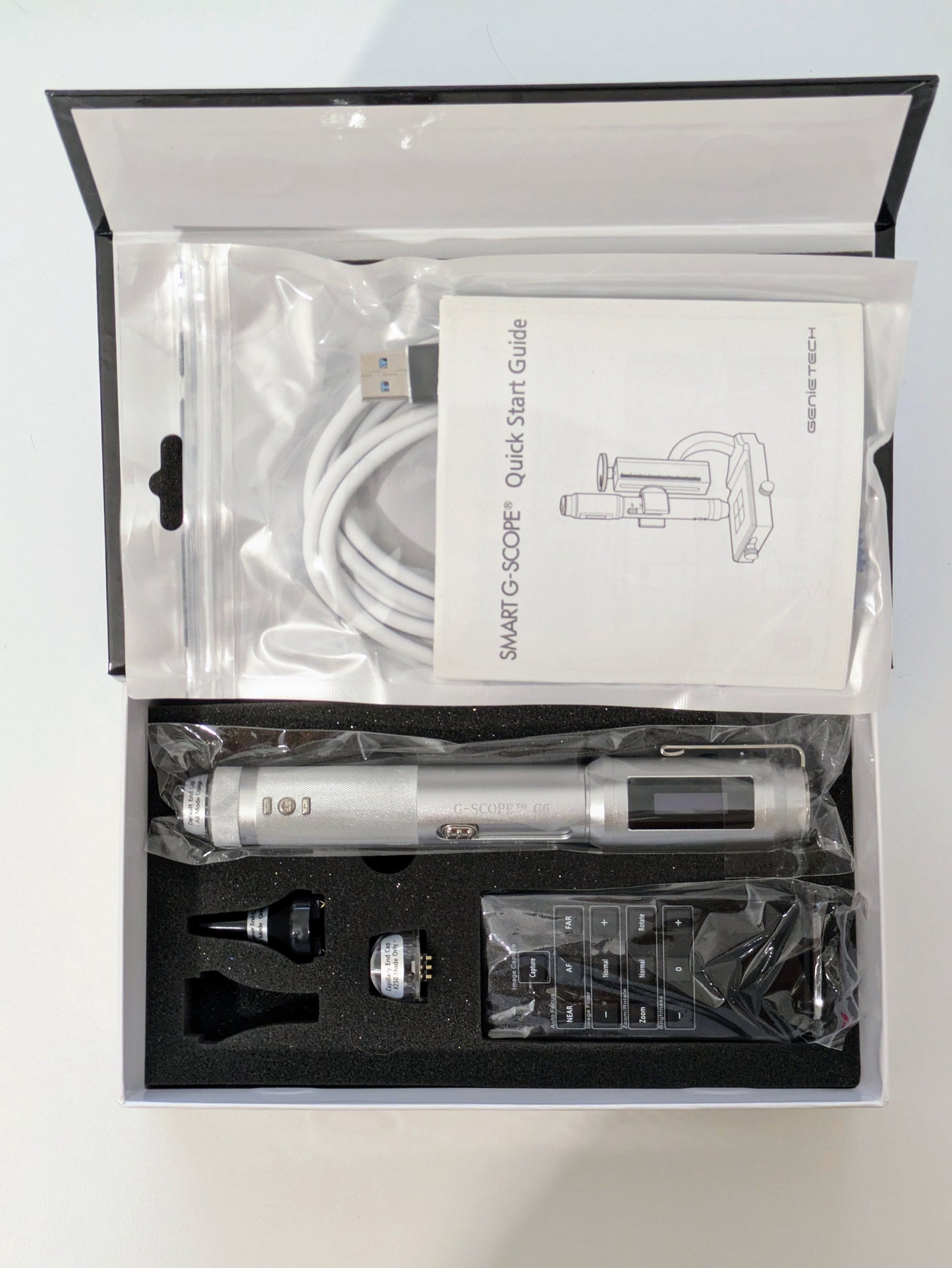

Package contents Microscope, carry box, user manual, basic end cap, 3pi end cap, capillaroscopy end cap, remote controller, cable for computer and cable for mobile device
Warranty 2-year european guarantee
GTIN Barcode 195893186389
View full details

Customer Reviews

Based on 7 reviews
100%
(7)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
F
Franklin Uguña
La mejor inversión

Definitivamente la mejor experiencia para hacer capilaroscopia, te permite optimizar tiempo, imágenes nítidas, visualización de campo ideal, el auto enfoque es de gran utilidad, comparado con otros equipos el Smart G Scope es de largo el mejor.

B
Bogdan Penev
Newbie in capillaroscopy and happy with the purchase

I bought this capillariscope right after having completed the initial EULAR course, so this is my first device and my first experience of performing the scopy by myslef.
First of all, I have to say that the company staff have been actively very supporting and answered all the questions a newbie can have.
Second - the device itself. Handy and easy to use. The image is very good, at least for me - I can see everything that we were taught to look for without any problems. One thing that is very useful is the measurement line on the screen which allows you to measure both the numer of cappillaries in 1 mm and if there are giants as the line is didvided in 50 mcm.

In conclusion, I would definetely recommend the device.

M
Mayka
Fantástico

Imagen con muy buena resolución y sus 250x es el aumento ideal. Campo amplio, para no perder la referencia. Facilidad de tomar imágenes de varias formas según el explorador esté solo o acompañado. Su complemento ideal es el software CAPILLARY.IO, … increíble, un antes y un después en mis capilaroscopias. En unos segundos analiza las imágenes obtenidas con un margen de error mínimo (que puedes editar) y organiza un informe editable. Elimina de una forma considerable la subjetividad inherente a la capilaroscopia.

M
Miguel mesa
Excelente compra

es una solución practica para capilaroscopia. El software hace muy fácil la realización de las mediciones y el capilaroscopio se comporta de una forma eficiente. Dentro de sus virtudes el autoenfoque facilita muchísimo el proceso y el proceso automático de asignación de cada foto hace que todo el proceso sea verdaderamente ágil. La definición es comparable a otros dispositivos de primer nivel

En conclusión si la persona esta interesada en la realización de capilaroscopia esta es una muy buena opción

M
Maged Helmy
Eduardo is extremely helpful

Eduardo has been fantastic helping me with the microscope! Highly recommended company and service
